Federal Way Amateur Radio Club P.O. Box 23415 Federal Way, WA 98093-3415
FWARC Analog FM Repeaters 147.040 Mhz, plus offset, PL=103.5 146.760 Mhz, minus offset, PL=103.5 442.950 Mhz, plus offset, PL=103.5 442.925 Mhz, plus offset, DCS 036
FWARC DSTAR Repeaters 146.840 Mhz, minus offset, WA7FW-C 443.850 MHz, plus offset, WA7FW-B 1290.100 MHz, minus offset, WA7FW-A 442.925 Mhz, plus offset, WA7DR-B

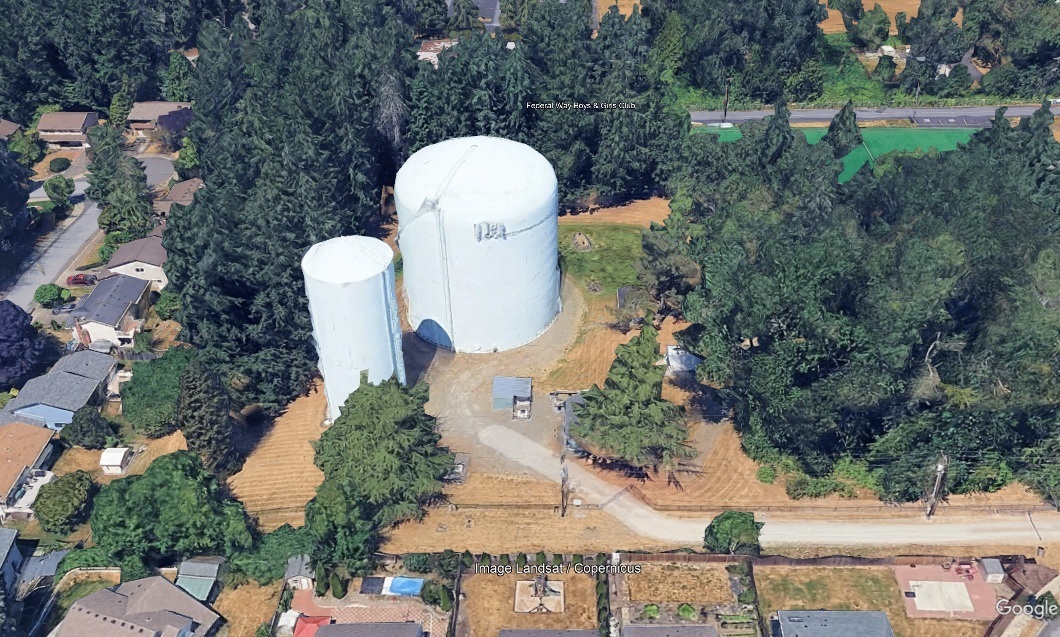

Our 147.040 MHz repeater is a Motorola Quantar commercial grade repeater running in dual mode repeating both FM Wideband (25kHz) or P25 Phase 1 inputs. Output power is set for about 85 watts. This repeater system has a built-in repeater controller and full onboard diagnostics. The antenna is a Comet GP-6 dual band antenna mounted approximately 120 feet above the ground. This repeater has a positive offset and a PL tone of 103.5.
We have a stack of three Yaesu DR-1 System Fusion repeaters. One DR-1 operates on 442.950 Mhz. The other two DR-1 repeaters are backups to our 147.040 or 442.925 repeaters. These first generation Yaesu C4FM & analog FM dual mode repeaters were developed for use with Yaesu's System Fusion, however, we are currently operating our 442.950 repeater in analog mode only. The antenna is mounted approximately 100 feet above the ground. This repeater has a positive offset and PL tone of 103.5.
